一、GBF衬氟管道泵简介GBF Series Fluorine plastic lining pipeline pump



　　GBF型衬氟管道泵是通过氟塑料热熔融模压工艺制造，具有特强的耐腐蚀性能的新型管道离心泵。该泵叶轮通过支架与电机直联，结构紧凑,选用波纹管外装式机械密封,轴封稳定可靠,直观易调。水力性能优越,吸入口过度均匀,过流部件采用全氟材料(FEP、PFA)制造,耐腐性能卓越。具有耐腐、耐温、不老化、运行平稳、噪音低.效率高、维护方便、使用寿命长等优点广泛用于制酸制碱、石油、化工、电解、电镀酸洗铝箔、稀土、医药、染料、农药、烟气脱硫,除尘、食品制药和合成纤维等行业。



　　适用温度60℃~+150℃



　　GBF series fluorine plastic lining pipeline pump is made by fluorine plastic hotmelt molding process,with particularly strong corrosion resistance of the newpipeline centrifugal pump.This pump impeller and motor straight via stent,choose bellows oufer container type mechanical seal,shaft seal is stable andreliable,intuitive easy to adjust.hydraulic performance is superior,the suctionuniform.over-current components using fluorine plastic materials(PEP,PFA)manufacturing,decay resistance performance excellence.Corrosion resistance,heat resistance,not aging,smooth operation,lownoise,high efficiency,easy maintenance,long life and other advantages.,widely used in acid and alkali,oil,chemical industry,electrolysis,electroplating.pickling,aluminum foil,rare earth,medicine,dyes,pesticides,flue gasdesulfurizatio and dust removal,food,pharmaceutical and synthetic fiberindustries.



　　Applicable temperature:60℃~～+150℃

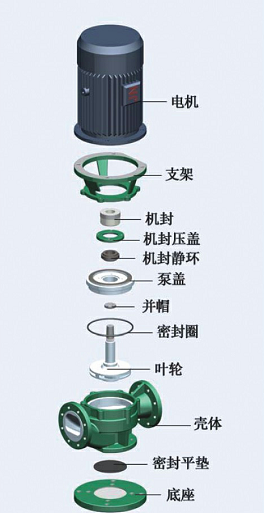

　　二、GBF衬氟管道泵零部件示意图Structure and material



　　三、GBF衬氟管道泵型号意义Model sense



　　50GBF-30



　　50-进口~出口公称直径(mm)，50:Nominal diamefer of inlet and outle



　　GBF-衬氟管道泵，GBF:Fourine plastic lining pipeline pump



　　30-泵的扬程(m)，30Pomp head



　　四、GBF衬氟管道泵设计特点Design features



　　1.过流部件采用氟塑料热熔融模压工艺牢固结合成一个整体,机械强度高;



　　2.具有卓越耐腐性能,输送各类强酸、碱﹑氧化剂等腐蚀性介质及有机溶剂毫不受损;



　　3.泵为立式结构,进出口口径相同,且位于统一中心线上,安装方便,使用场地地面积小,电机改用防雨风罩可置于户外使用;



　　4.叶轮与电机直联传动,轴向尺寸短,结构紧凑,运行平稳,传动效率高,噪音、振动低;



　　5.轴封选用外装四氟波纹管机械密封,密封可靠,直观可调,并可根据介质特性提供多种材质摩擦副选择,应用范围广;



　　6.使用维护便捷,只要卸下泵体与连接架紧固螺母即可拆解其余部件,无需拆动管路。



　　1.The pump flow components application fuorine plastic hot melt moulding proces combined into a whole,high mechanical strength;



　　2.Has excellent comosion resistance performance,transmission of alkoinds of corrosive medium,such as acid,alkali oxidant and organic solventwithout damage;



　　3.3.The pump is verical structure inlet and outlet diameter are the same,and islocated in the center of a urified online,eay instalationuse of asmall area,the motor add a rainproof cover can be used outdoors;



　　4.The impeler and motor drect dive,short axial dimensions,compact structure,smooth operation high transmission efficiency,low noise andvibration;



　　5.Shaft seal instlled PTFE corugated pipe mechanical sea,.sedled and reliable,inftitive,and according to the characteristics of the media toprovide a variety of materials friction pair selection,and has a wide application range;



　　6.The use of the maintenance is convenient,only need to remove the pump body and the connecting frame fastening nut can bedisassembled the rest.no need to remove the dynamic pipeline.

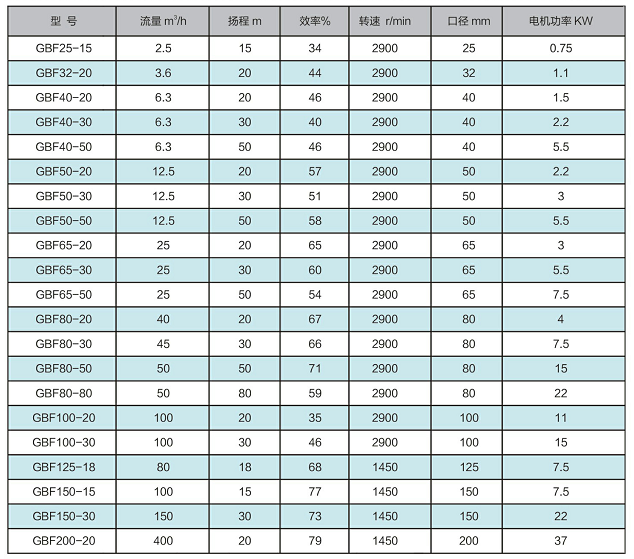

　　五、GBF衬氟管道泵的型号与性能参数Model and technical data
