一、JUY型耐磨耐腐液下泵简介JUY series corrosion resistance and abrasion resistance submerged centrifugal pump



　　JUY系列液下离心泵，与输送介质接触的过流部件采用超高分子量聚乙烯(UHMWPE)及增强聚丙烯整体模压而成的,液下深度1~2米,是性能稳定﹑技术成熟、受用户欢迎、定型的防腐型泵类产品,具有优异的耐腐耐磨性能,其耐温性~防腐性﹑机械稳定性、耐磨性以及运行费用的经济性都得到了用户的认可。适宜于-20~80℃范围内的酸碱性料浆或清液的输送。



　　JUY series submerged centrifugal pump,the flow component which and direct contact with thetransmission medium is use of ultra high molecular weight polyethylene(UHMWPE)and reinforcedpolypropylene overall molded,the depth of 1~2 meters under liquid,is a mature technology,stableperformance,welcomed by users,anti-corrosion products stereotypes,has excellent corrosionresistant performance,temperature resistance,corrosion resistance,mechanical stability,abrasionresistance and operation cost of economy are all have been recognized by the user.Suitable fortransport within the range of-20~80℃acid and alkaline pulp or the liquid without any impurities.

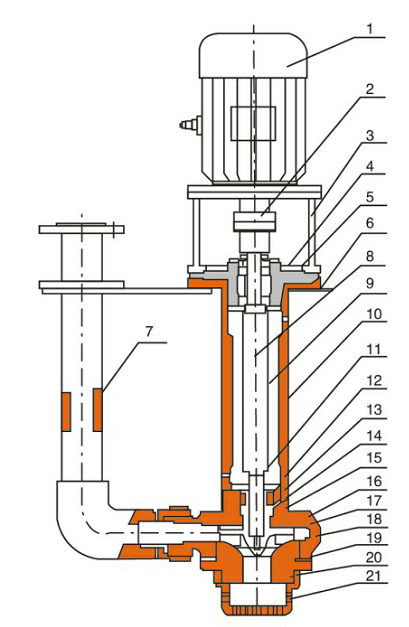

　　二、结构示意图Structure and material





　　三、型号意义Model sense



　　50JUY-30-25



　　50-泵排出口径50mm Pump outlet diameter is 50mm;



　　J-江南泵阀企业代号Our company name Abbreviation;



　　U-分子材质Polymer materials;



　　Y-液下泵代号Submerged pump code;



　　30-泵的流量为30m3/hPump flow is 30m3/h;



　　25-泵的扬程为25m The pump head is 25m;

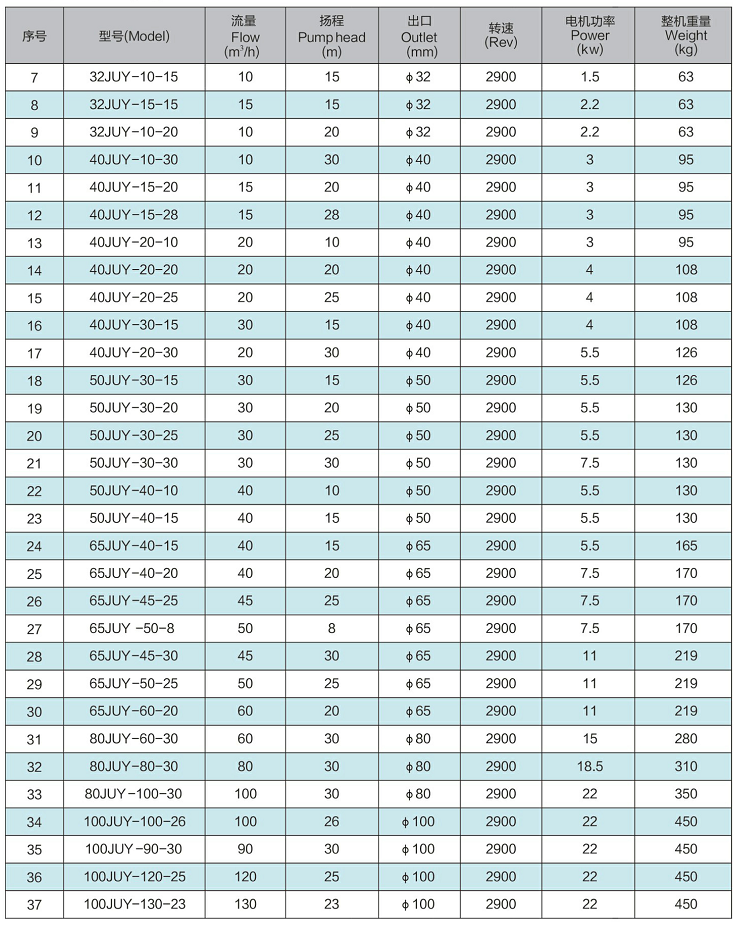

　　三、泵的型号与性能参数Model and technical data



　　*表格中流量扬程加粗字体为基本型bold font as the standard model
